Cam Switch
As the professional manufacturer, we would like to provide you MBI Cam Switch. Our switch cam switches feature durable construction and reliable performance for a variety of applications including machinery, industrial equipment and control panels. The easy-to-operate design allows seamless switching between open and closed positions, providing convenience and efficiency to any electrical system. Whether your machinery needs new switches or you're looking to upgrade your control panel, our switch cam switches are the ideal solution.
Here are the key features and functions of cam switches:
Rotating Cam Mechanism: The core component of a cam switch is a camshaft with specially shaped cams mounted on it. As the camshaft rotates, the cams engage with mechanical contacts, causing them to open or close based on the cam's profile.
Selective Control: Cam switches allow for selective control over multiple electrical circuits or functions by rotating the camshaft to different positions. Each position corresponds to a specific set of electrical contacts, enabling various circuit configurations.
Manual Operation: Cam switches are typically manually operated by turning a knob, lever, or handle attached to the camshaft. This manual operation allows users to directly control the switching action and select the desired circuit configuration.
Contact Arrangement: Depending on the design and configuration of the cam switch, it can have different contact arrangements, including single-pole, double-throw (SPDT), double-pole, double-throw (DPDT), or multiple poles and throws to accommodate various circuit requirements.
Applications: Cam switches are used in a wide range of applications where precise control over electrical circuits is needed, such as control panels, machinery, industrial equipment, and automation systems. They are particularly useful in applications requiring sequential control or switching between multiple operating modes.
Durability and Reliability: Cam switches are built to withstand mechanical wear and provide reliable operation over extended periods. They are often constructed with durable materials and precision engineering to ensure consistent performance in harsh industrial environments.
Customization: Cam switches can be customized to meet specific application requirements, including different numbers of positions, contact ratings, mounting options, and shaft configurations.
Safety Features: Some cam switches incorporate safety features such as interlocks to prevent unintended switching or tampering, ensuring safe and reliable operation.
- View as

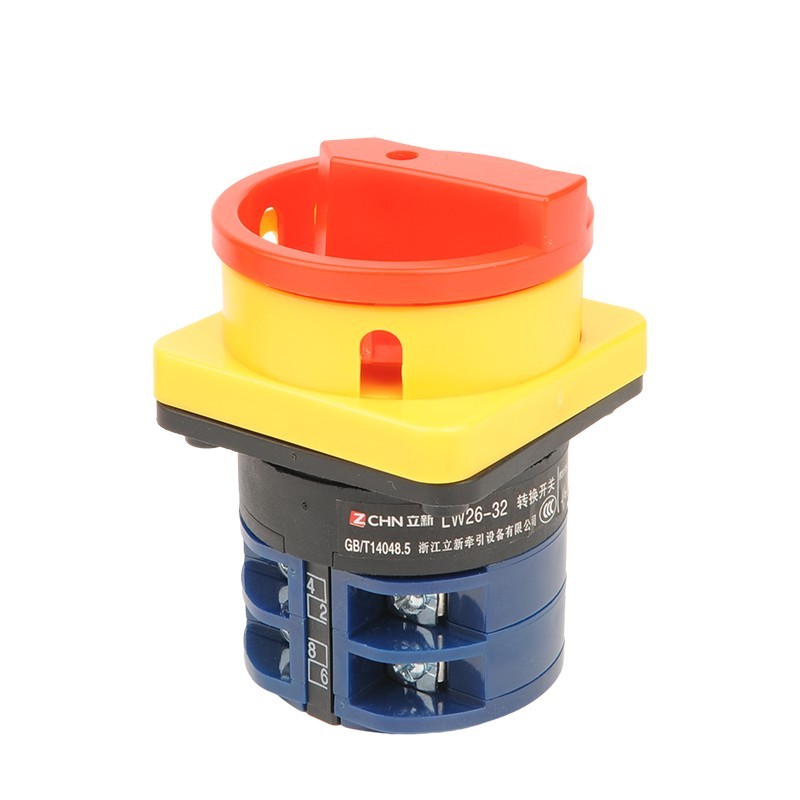

LW26GS Padlock Type Power Cut-Off Cam Switch
LW26GS Series Padlock Type Power CUT-off Switch is the derivative product of LW26 series.This switch is mainly used as a power switch that is required to be padlocked in machine tools,which can be locked by padlock on connect and disconnect position to prevent misoperation and the operation of unauthorized person.And our products comply with the certification of GB/14048.3,GB14048.5 and EN60947-5-1.
Read MoreSend Inquiry

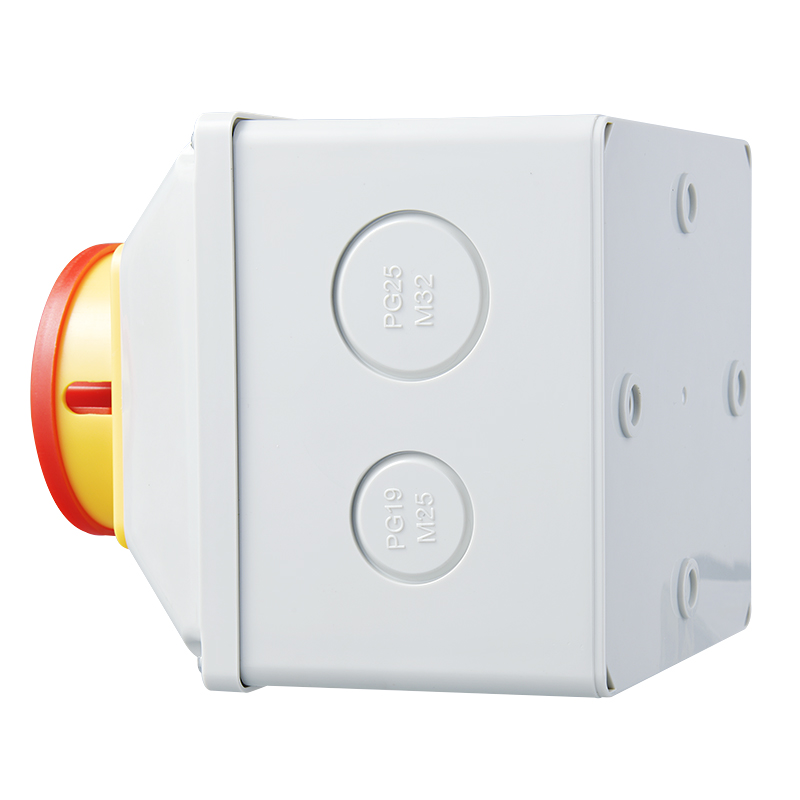

LW26GS Waterproof box with Rotary Switch
LW26GS Waterproof box with Rotary Switch is available in various specifications. It is available in a wide range of specifications, such as different current sizes, voltage levels, number of poles, etc., which can be selected according to the need to adapt to a variety of circuit scenarios. It has a high degree of protection. It can be effectively waterproof, dustproof and can adapt to the more severe use of the environment. In terms of features, it has a variety of functions, easy to operate, through the rotary switch can easily achieve the corresponding control, and the use of high-quality materials to ensure that the switching contact is reliable, good safety performance, and easy to install, which can save time and cost for installation work.
Read MoreSend Inquiry

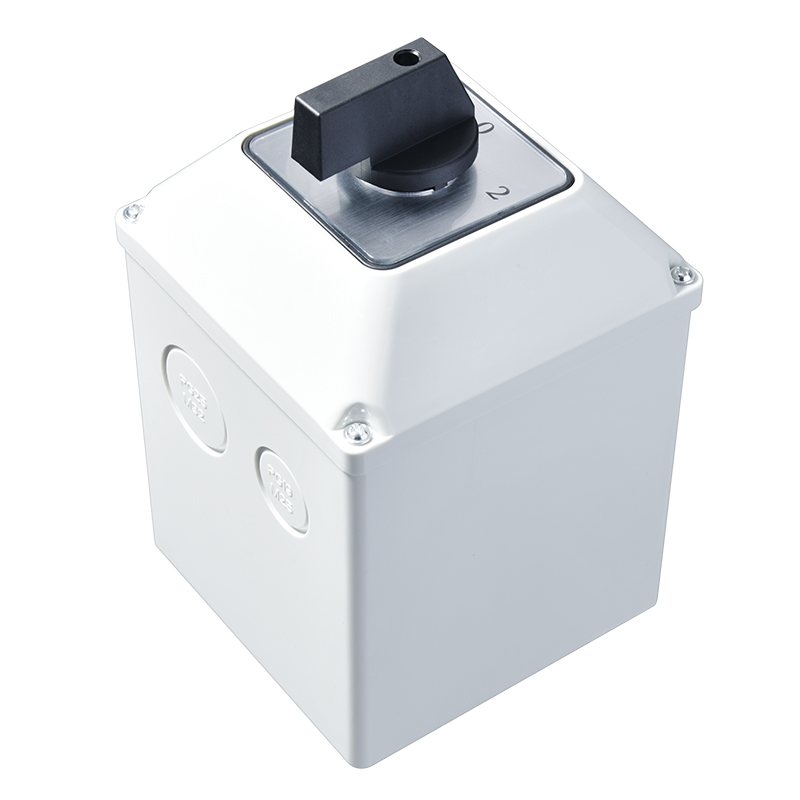

LW26 Waterproof box with Rotary Switch
As the professional manufacturer, we would like to provide you MBI LW26 Waterproof box with Rotary Switch. Our switches have passed GB/T 14048.3, GB/T 14048.5 and EN60947-5-1 certification, ensuring the highest quality and safety standards. This series of switches has complete specifications, including current levels of 10A, 20A, 25A, 32A, 40A, 63A, 125A, 160A, 250A and 315A, meeting various electrical needs. The Ip65 Cam Operated Rotary Switch has a compact design and saves space, making it ideal for places with limited installation space. These switches offer a variety of current level options for a wide range of applications to meet different electrical needs. The compact structure design ensures stability and reliability. It has excellent insulation properties, ensuring safe use.
Read MoreSend Inquiry

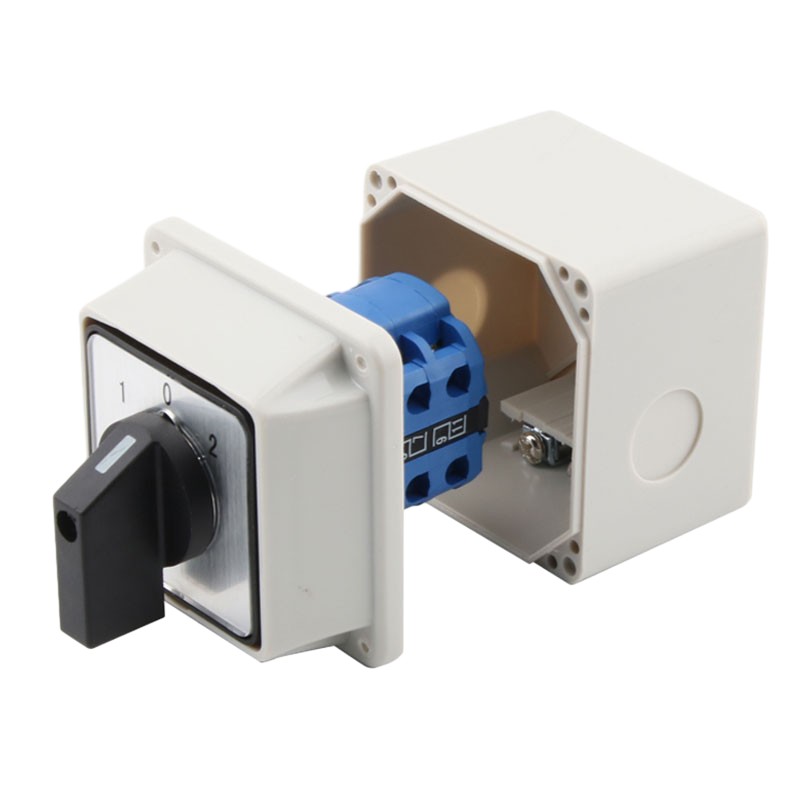

LW26-20A/2P with waterproof of Cam Switch
LW26-20A/2P with waterproof of Cam Switch of product summary: Basic parameters: rated current is 20A, number of poles is 2P, suitable for AC 50Hz, rated working voltage 380V and below, DC voltage 220V and below in the circuit, can realise the on-off control of the circuit and switching of different working states. Material and structure: Plastic and other insulating materials as the shell, with good corrosion resistance and mechanical strength. The internal cam mechanism drives the contacts to carry out on-off action, compact structure, flexible operation, by rotating the operating handle can change the position of the cam, so as to achieve the conversion of the circuit.
Read MoreSend Inquiry

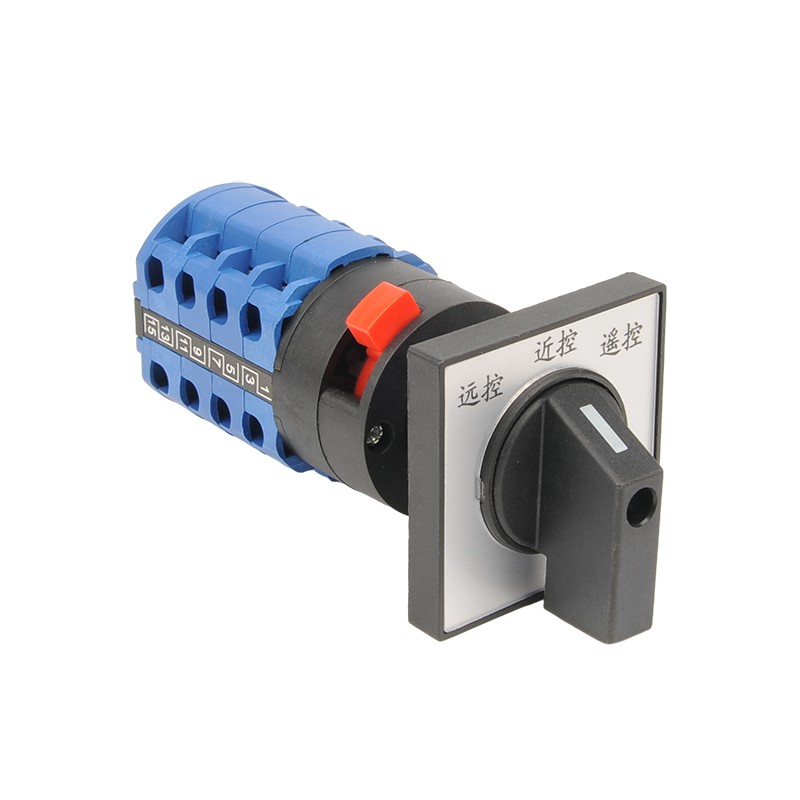

LW26-20A/4P with head and neck mount
LW26-20A/4P with head and neck mount: It is fitted with a special 'head and neck' mounting structure or component, as opposed to the conventional mounting method. This type of mounting allows the switch to be more securely installed in electrical cabinets or distribution boxes. It can be adapted to suit specific spatial layouts or provide additional support and stability, reducing the risk of loosening or dislodging due to external factors such as vibration and shock. Performance parameters: Rated current of 20A, with 4 pole (4P) contact structure, can control four circuits or switching operations at the same time. High insulation and voltage resistance, can effectively protect electrical safety. Low contact resistance ensures good electrical conductivity and reduces energy loss and heat generation. Long mechanical and electrical life, can meet the requirements of long-term frequent operation.
Read MoreSend Inquiry

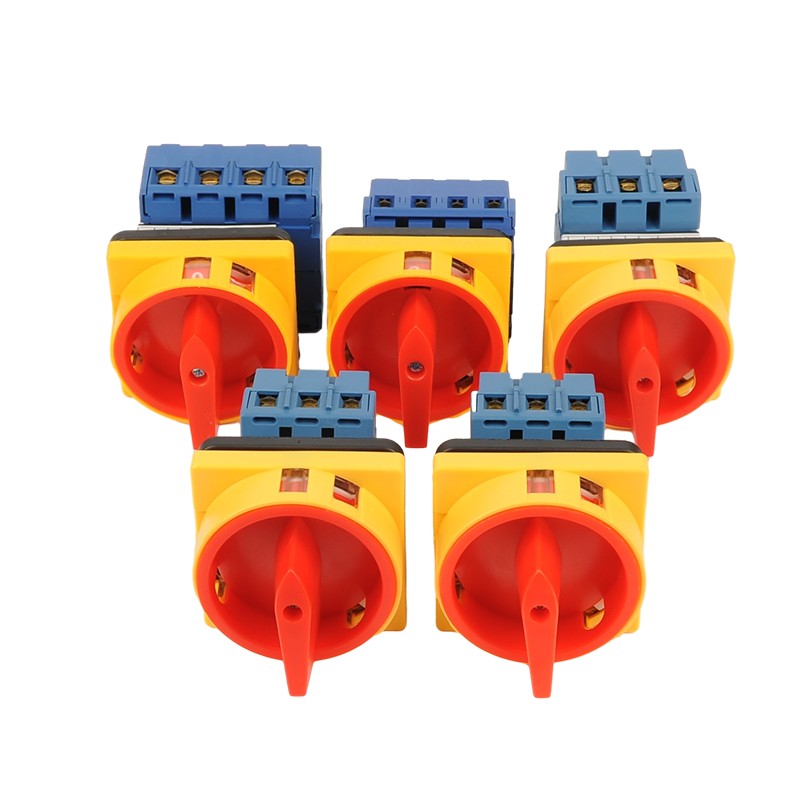

LW30 SERIES OF CAM SWITCH
LW30 SERIES OF CAM SWITCH PRODUCT SUMMARY Application: It can be used as the main switch of ventilation equipment, air-conditioning and water pumping system, and can also directly control the small-capacity AC motor. It is mainly used in AC 50Hz power line, rated voltage below 440V and rated current up to 100A. Advantages: Complies with the standards of GB14048.3 and IEC60947-3, full specifications, 20A, 25A, 32A, 40A, 63A, 80A and 100A, etc. 7 kinds of current levels. It has the features of small size, compact structure, well-chosen material, good insulation, finger guard function, etc. It is safe and reliable. The insulation distance is larger than other switches of the same type, the disconnection speed is fast, it is suitable for DC switching, and it is possible to add other contact blocks to the standard 3-pole block without dismantling the switch.
Read MoreSend Inquiry

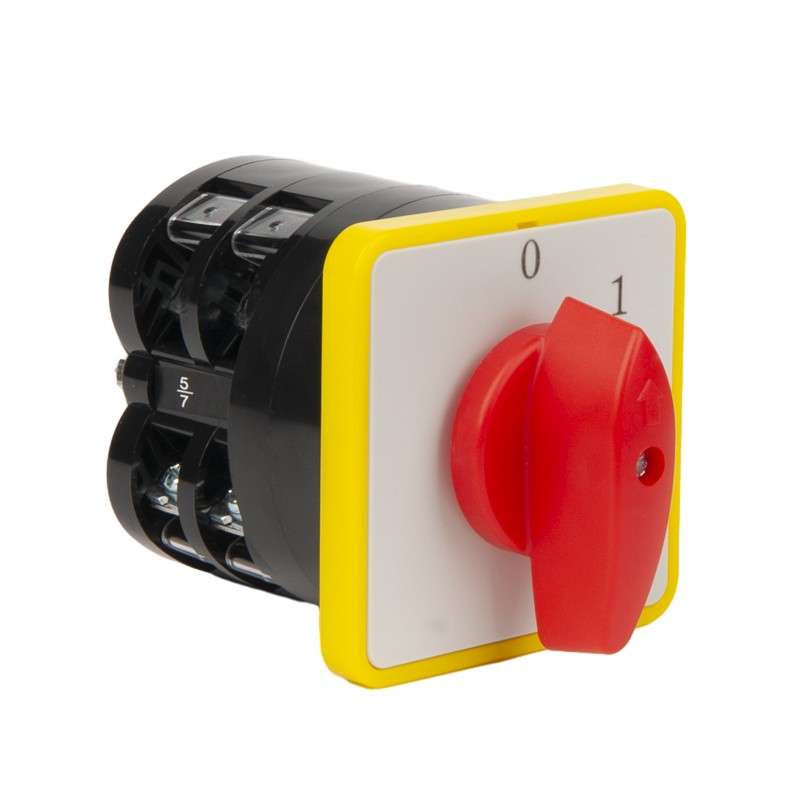

LW5-40 2 POLES 0-1 40AMP Cam Switch
LW5-40 2 POLES 0-1 40AMP Cam Switch of product Characteristics Multi-speed switching: It can realise switching of different circuit connection states to meet a variety of electrical control needs, for example, it plays an important role in the scenarios of motor forward and reverse control, dual power switching and so on. Bipolar design: With two electrodes, it can control the on-off of two circuits at the same time, which is suitable for the control of two independent circuits at the same time or the control of electrical equipment with two poles. Current Capacity: Rated current is 40A, able to withstand large current loads, can be used in high current demanding circuits to ensure stable circuit operation, not easy to be damaged by overloading.
Read MoreSend Inquiry

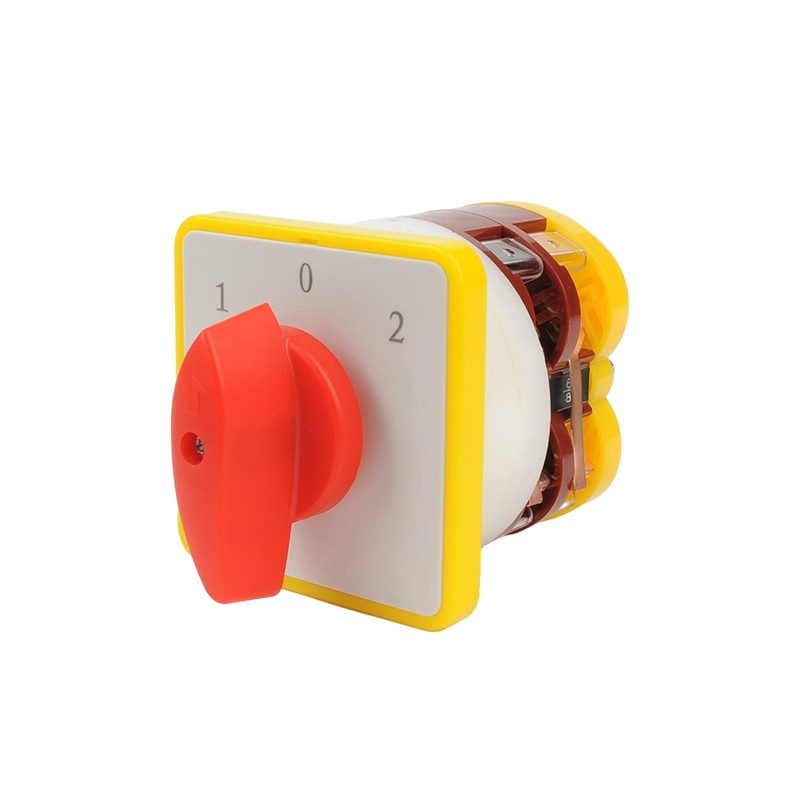

LW5-40 1 POLE 1-0-2 40AMP Cam Switch
Basics of LW5-40 1 POLE 1-0-2 40AMP Cam Switch Model Meaning: LW5 stands for the series number of the universal transfer switch, 40A stands for the rated current of 40 amperes, 1P stands for the single pole. Technical Parameters Rated voltage: 500V AC, 440V DC. Current rating: 40A. 500V insulation voltage. 16A conventional heating current. Product structure Two types of transfer switch are available for 5.5KW three-phase squirrel-cage induction motor main control and direct control, depending on the application. There are 16 kinds of contact system, divided into 1 to 16 sections. There are two positioning types and one self-repeating type. According to the shape of the actuator: there are two kinds of ball pinch hand type and knob type.
Read MoreSend Inquiry
MBI Traction Equipment is one of the professional Cam Switch manufacturer and supplier in China, known for its excellent service and cheap prices. As a factory, we can create customized Cam Switch. Besides, we have our own brands. If you're interested in wholesaling our high-quality products, please contact us. We sincerely look forward to becoming your reliable, long-term business partner!
